Download Overview
| Parameter | Specification | Note |

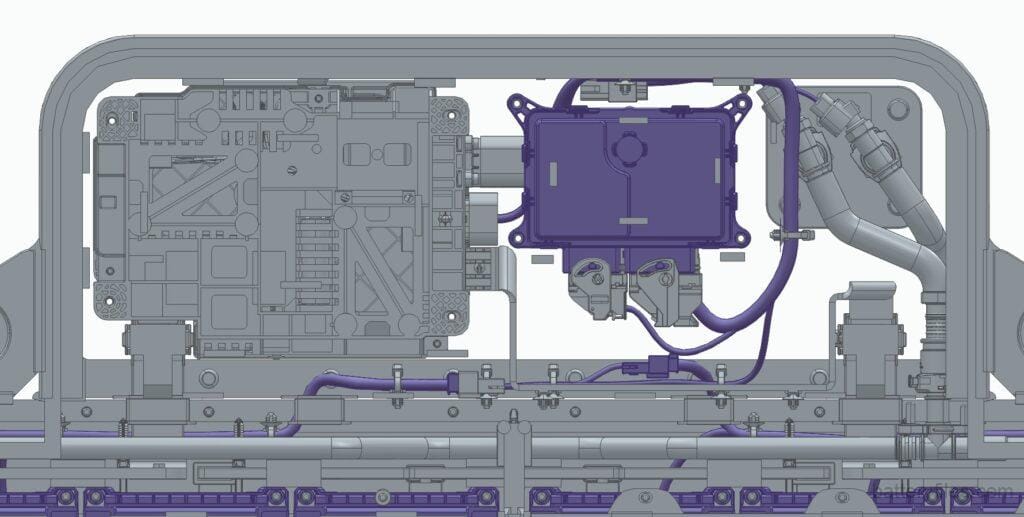

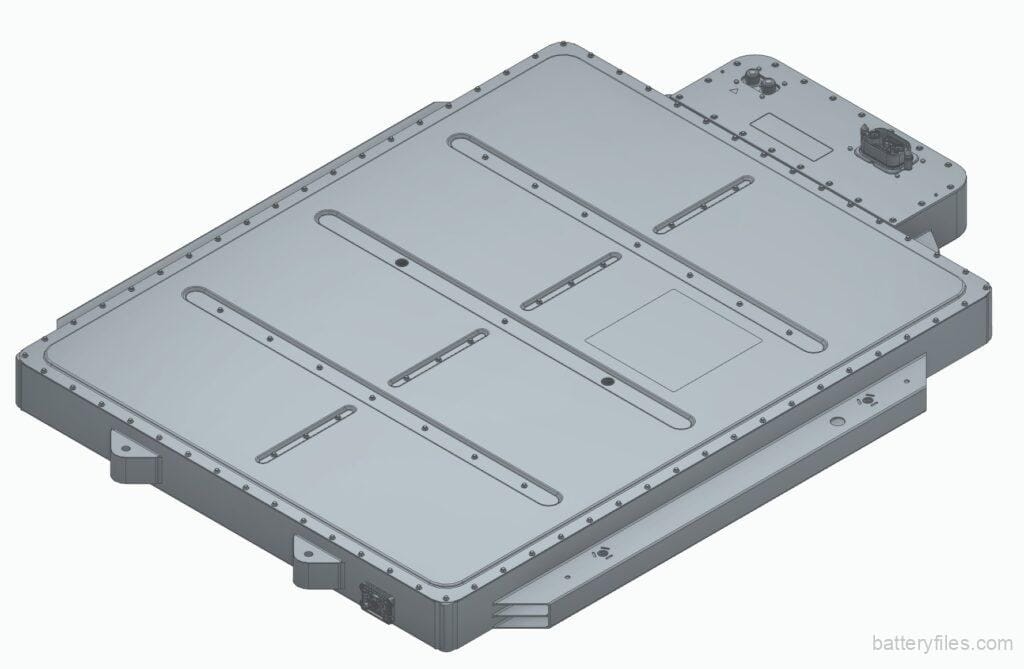

| Dimensions (L*W*H) | ~2062 × 1539 × 136 mm | / |
| Weight | ~525 kg | Total Pack Weight |
| Nominal Voltage | ~350.4V | / |
| Energy | ~70.1 kWh | Standard Range (SR) Version |
| Cell | Initial Version: CATL Prismatic NMC NEV-P50 50Ah Improved Version: CATL Prismatic NMC NEV-P102 100Ah | / |

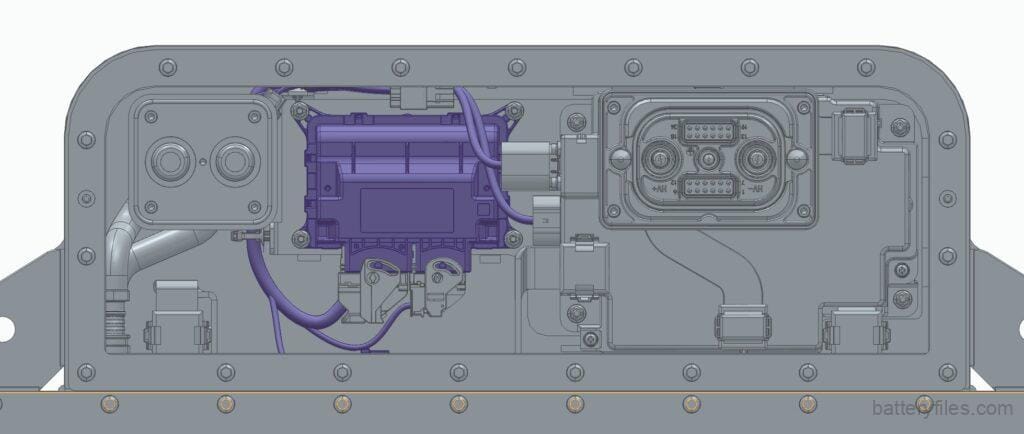

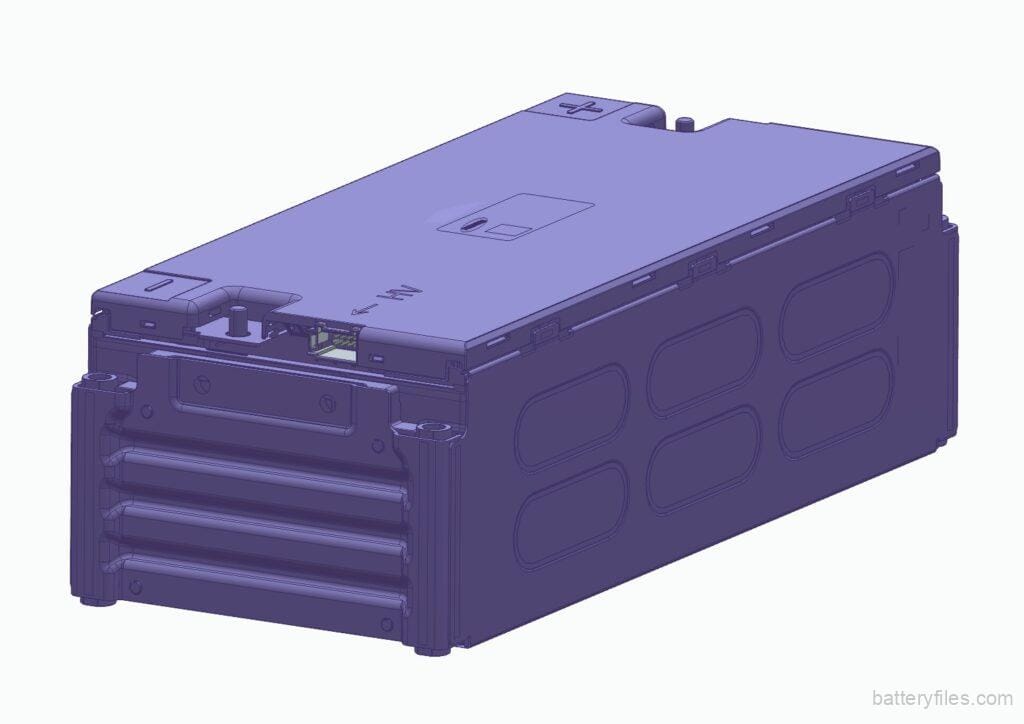

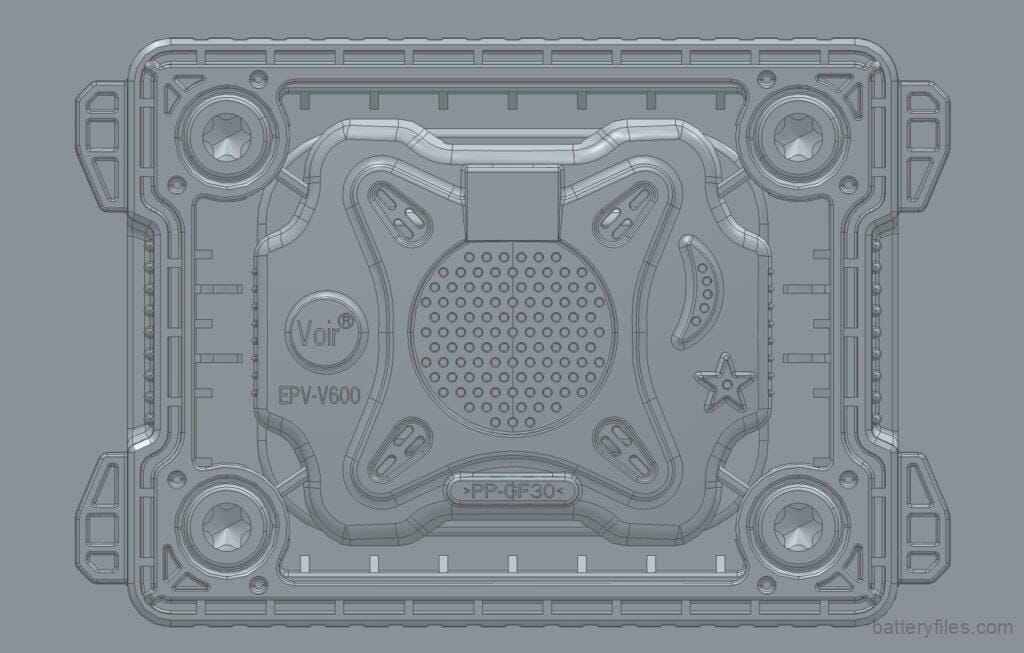

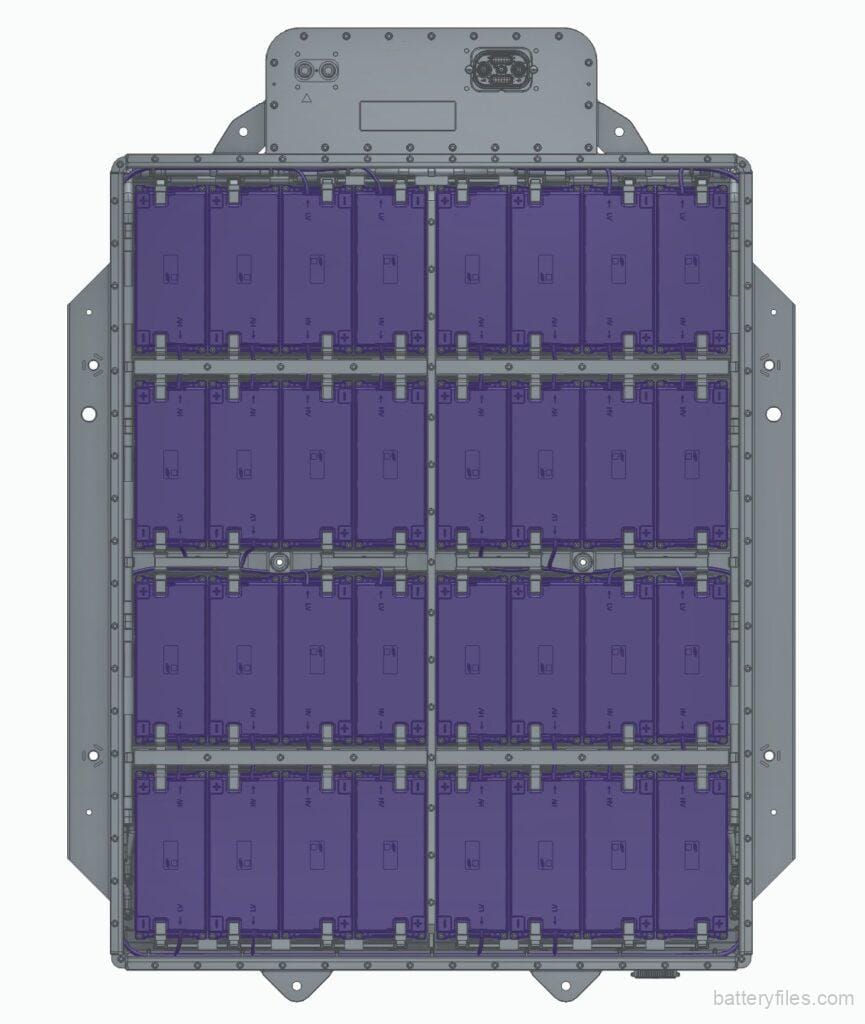

| Structure & Configuration | Cell to Module to Pack Standard VDA Module | Initial Version: Cell 50Ah, Module 6S2P, Pack 96S4P Improved Version: Cell 100Ah, Module 6S1P, Pack 96S2P Initial Version and Improved Version have the same Module Case. |

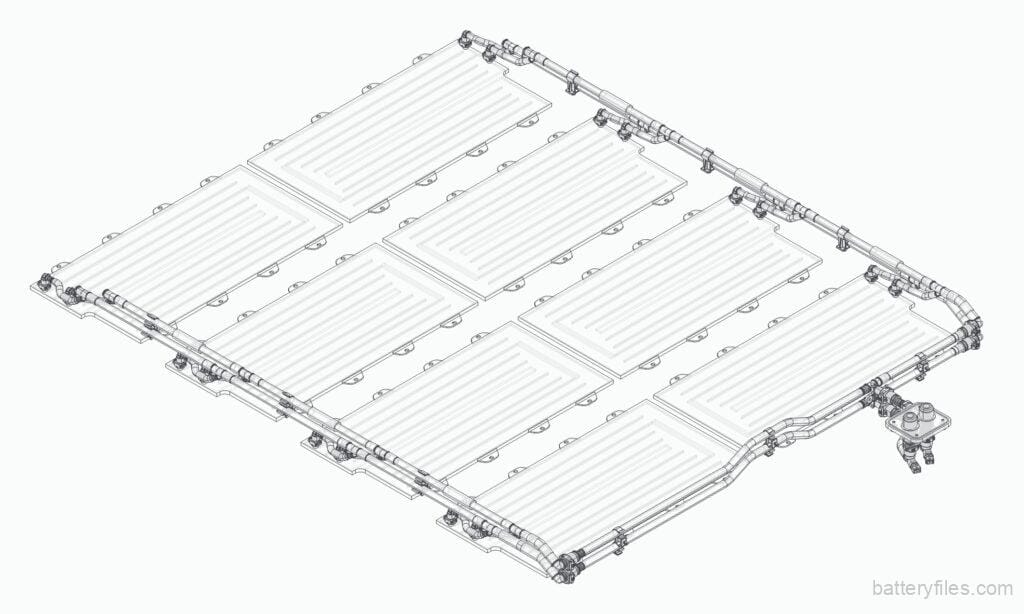

| Thermal Management | Liquid Cooling Liquid Heating Working Temperature: -30℃~60℃ | Bottom liquid cooling plate design |
| IP Rating | IP67 | Automotive Grade |
| Application | Compatible with NIO Electric Vehicles | Universally compatible across ES8/ES6/EC6 etc. Automated Battery Swapping Station |
What’s Included in the Download
Upon successful checkout, you will receive an instant automated download link with the following production-grade files:
- 1_Battery_Pack_Model
- Battery_Pack.stp
- 2_Vehicle_BIW_and_Closures
- CATIA_Original_Model
- 3_Segmented_Vehicle_Data
- FS
- MS
- RS
- README_FIRST.txt
Bypass months of costly R&D and reverse engineering.
Compatibility & Legal Disclaimer
- Compatibility Notice: This document is independently developed for educational, benchmarking, reverse-engineering study, and academic research purposes. It represents structural conventions compatible with mainstream global Tier-1 platforms.
- Disclaimer: This product is NOT an official factory blueprint from any automotive OEM or battery manufacturer. All trademarks belong to their respective owners.
Payment
- Digital Nature & No Refunds: Due to the irrevocable nature of digital downloads, all sales are final and non-refundable once the download link has been accessed.
- Product Scope: The product is for professionals only, so the price does not include any implementation assistance or technical consulting unless explicitly stated otherwise.
- Invoice: VAT/Tax 0% (Export of Digital Services). Subject to the Reverse Charge Mechanism. Billing information can be updated on the Invoice.
Secure Delivery & Support
- Instant Delivery: 100% Automated download immediately after payment via secure SSL checkout.
- Support: File format corrupted? Contact our support team for a fresh copy within 24 hours.
