Download Overview
- Compatible with standard Automotive ECUs and EV Battery Management Systems (BMS). (This suite is a highly specialized, OEM-level framework primarily used for implementing ISO 14229/15765 Unified Diagnostic Services on automotive microcontrollers.)
- Perpetual License. No Subscriptions. No Recurring Fees.
- It includes the complete C-language source code, engineering-grade API flowcharts, and rigorous testing specifications. If you are developing custom automotive hardware, reverse-engineering diagnostic protocols, or looking to integrate robust CAN network layer state machines (Single/Multi-frame) into your own projects, this directory is practically an open book.
- IMPORTANT HARDWARE/SOFTWARE REQUIREMENTS: This framework is hardware-agnostic at the application layer. To successfully compile and validate the diagnostic communications, you will need your target MCU environment (e.g., DSP2803x, STM32) and a standard CAN interface analyzer (such as Vector CANoe, PCAN, or ZLG USBCAN) for physical testing.
Features
- 100% White-Box C-Source Code
- OEM-Grade State Machine Architecture
- Complete Engineering Documentation
- Out-of-the-Box ISO Compliance
What’s Included in the Download
Upon successful checkout, you will receive an instant automated download link with the following production-grade files:
ZIP file, size 19.3MB(original 20.3MB)
Language: English.

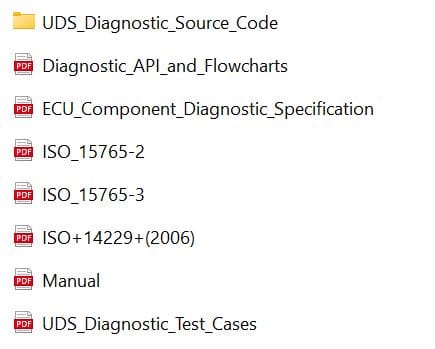

- UDS_Diagnostic_Source_Code
- inc
- DiagDataProcess.h
- Diagnose.h
- DiagnoseDrive.h
- ShinryDataProcess.h
- uds.h
- src
- DiagDataProcess.c
- DiagnoseApp.c
- DiagnoseDrive.c
- ShinryDataProcess.c
- uds.c
- inc

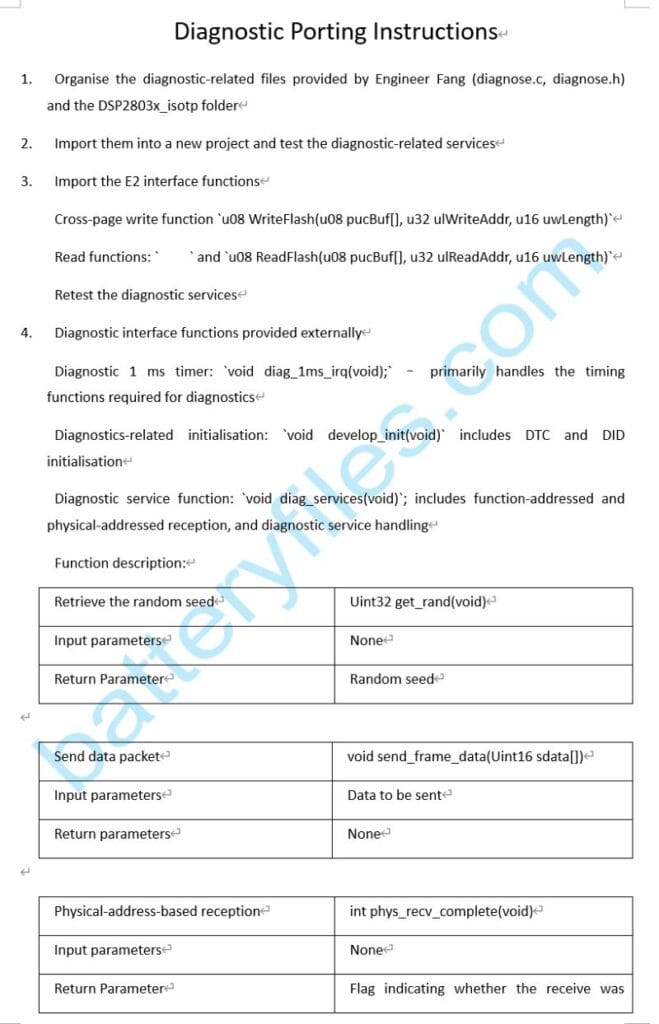

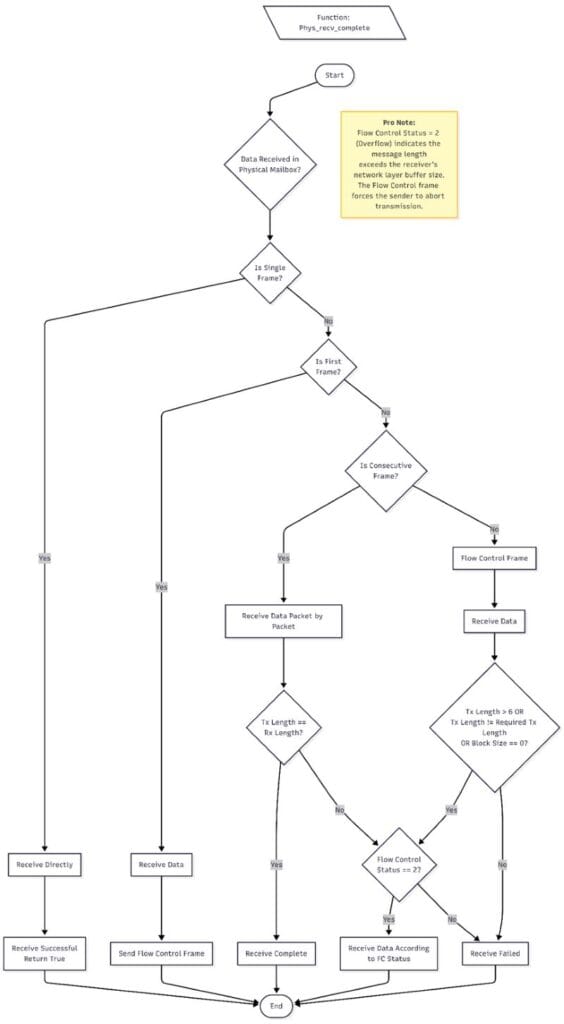

- Diagnostic_API_and_Flowcharts

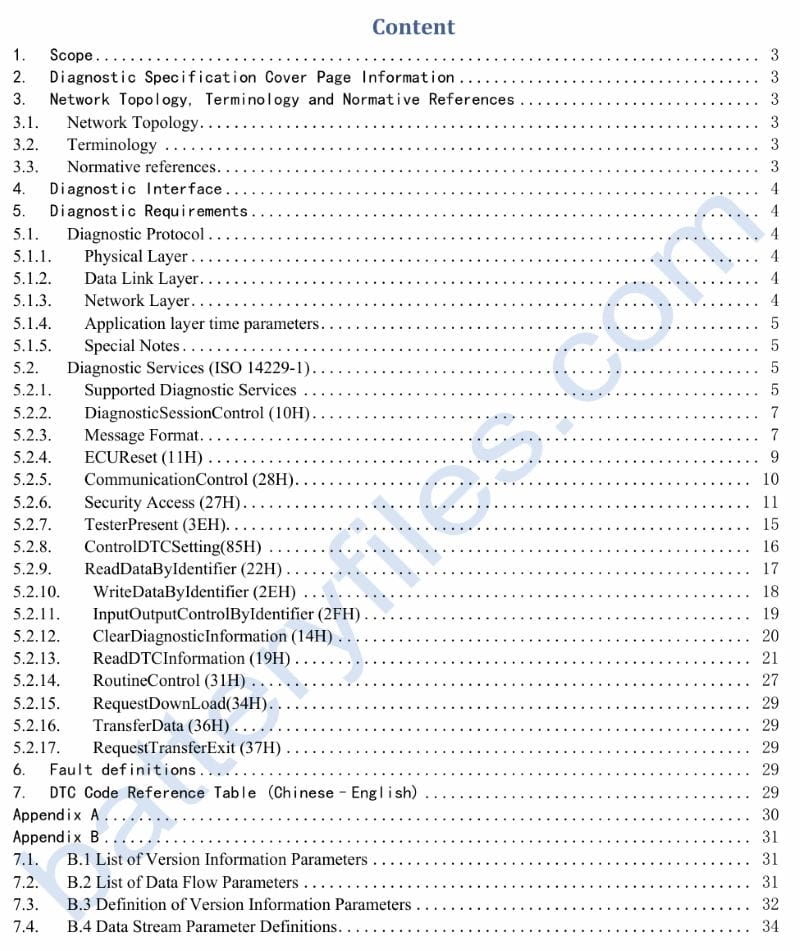

- ECU_Component_Diagnostic_Specification
- ISO_15765-2
- ISO_15765-3
- ISO+14229+(2006)
- Manual

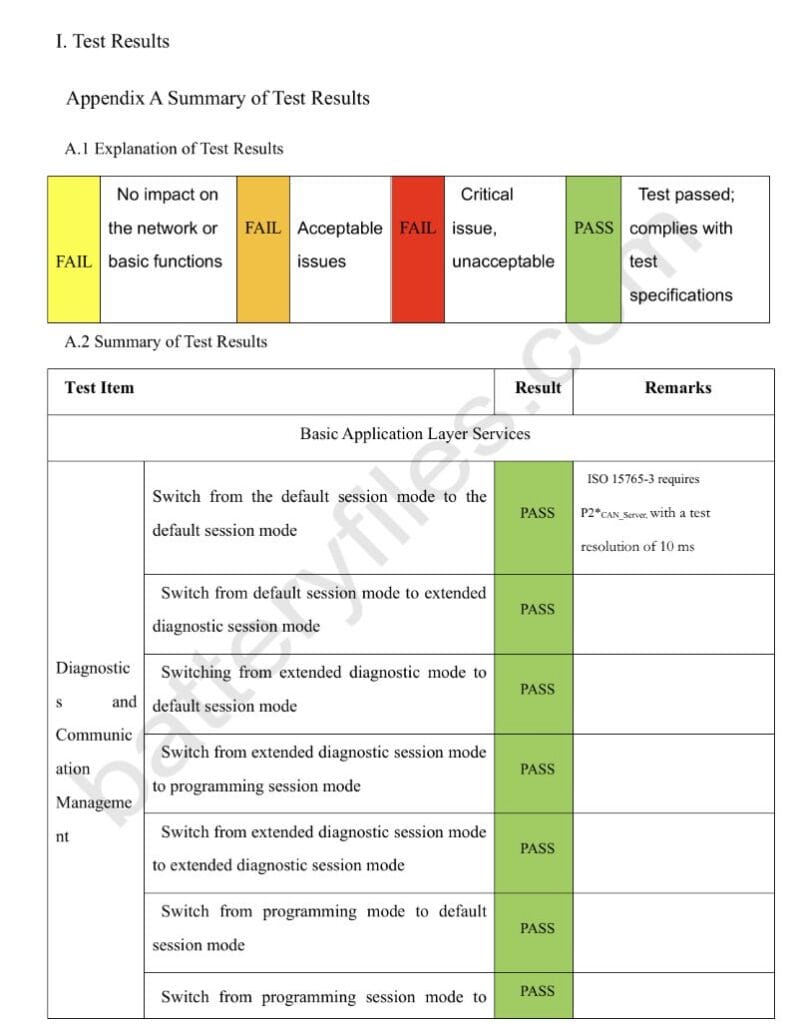

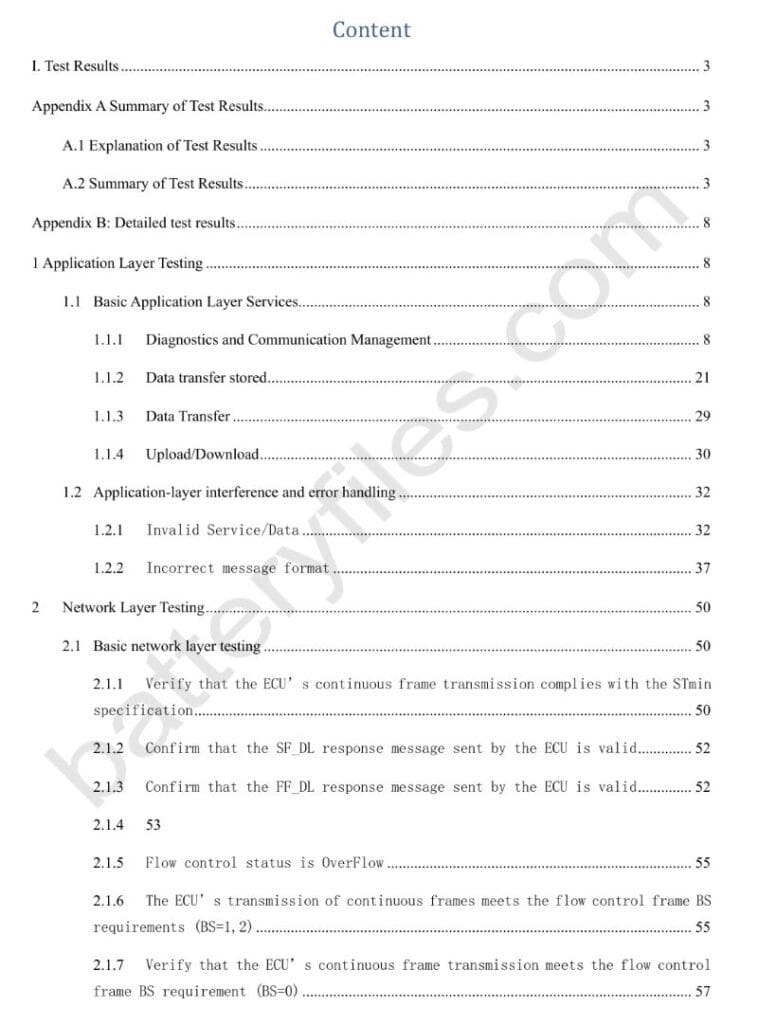

- UDS_Diagnostic_Test_Cases
Compatibility & Legal Disclaimer
- Compatibility Notice: This document is independently developed for educational, benchmarking, reverse-engineering study, and academic research purposes. It represents structural conventions compatible with mainstream global Tier-1 platforms.
- Disclaimer: This product is NOT an official factory blueprint from any automotive OEM or battery manufacturer. All trademarks belong to their respective owners.
Payment
- Digital Nature & No Refunds: Due to the irrevocable nature of digital downloads, all sales are final and non-refundable once the download link has been accessed.
- Product Scope: The product is for professionals only, so the price does not include any implementation assistance or technical consulting unless explicitly stated otherwise.
- Invoice: VAT/Tax 0% (Export of Digital Services). Subject to the Reverse Charge Mechanism. Billing information can be updated on the Invoice.
Secure Delivery & Support
- Instant Delivery: 100% Automated download immediately after payment via secure SSL checkout.
- Support: File format corrupted? Contact our support team for a fresh copy within 24 hours.
Looking for a Different Solution?
Contact us at [email protected]. We will reply within 24 hours on business days. : )
