Ebus 7.0 6.5 5.1 and Ecar BMS Monitor and Diagnostic Suite Unlocked

Download Overview

  • Compatible with CATL Ebus 7.0/6.5/5.1 and Ecar.(This software is a highly specialised, OEM-level suite primarily used for commercial Ebus and EV battery packs BMS, like CATL-compatible systems.)
  • Perpetual License. No Subscriptions. No Recurring Fees.
  • It has an engineering/service edition that includes the original .pdb (Program Database) files and the completely un-obfuscated BMSSecurityLibrary.dll and CAN communication APIs. If you are into reverse engineering or looking to extract the Seed-Key algorithms and CAN frame structures for your own custom BMS projects, this directory is practically an open book.
  • IMPORTANT HARDWARE REQUIREMENTS: This software uses standard ZLG CAN protocols (ControlCAN.dll). To successfully communicate with the BMS, you will need a ZLG USBCAN adapter or any 100% compatible USBCAN analyser.
BMS Ebus 7.0 Monitor UI

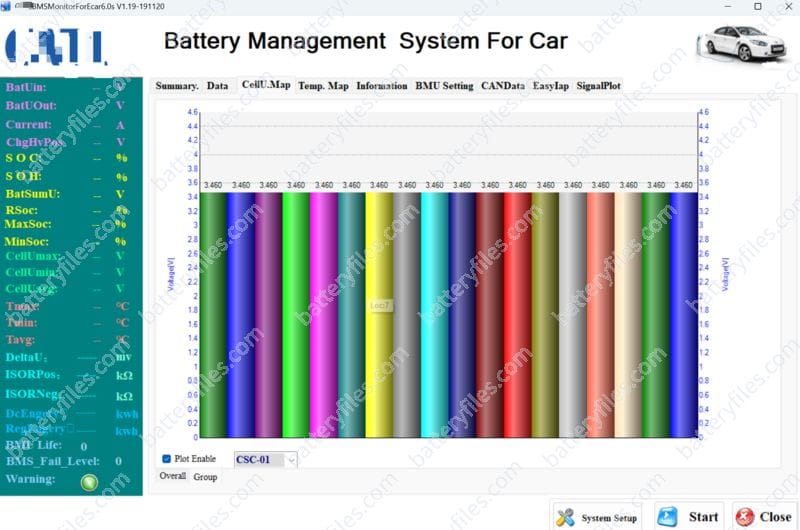

BMS Ecar Monitor UI

What’s Included in the Download

Upon successful checkout, you will receive an instant automated download link with the following production-grade files:

ZIP file, size 131MB(original 276MB)

Language: Ebus 7.0 T1.22, Ebus 7.0 T1.32, and Ecar versions are English.

  • Power_Battery_Monitoring_Software_Ebus5.1_V1.6.5_Service_Edition
  • Power_Battery_Monitoring_Software_Ebus6.0_V1.5.1_20190401
  • BMSEBusTestToolV01ForEBus7.0 T1.22-190614 English
  • BMSEBusTestToolV01ForEBus7.0 T1.32-191221
  • Install Instruction!
    • BeauGauge_Runtime_Environment
    • Tool5.0 6.0 7.0 Keygen
    • GetComID_Hardware_ID_Extractor
    • Install Manual Video
    • Install Manual
  • Other Versions(Ecar)
    • BMSEcarTestTool_V1.17
    • BMSMonitorForEcar6.0s V1.19-191120
    • CRC_Diagnostic_Host_Software

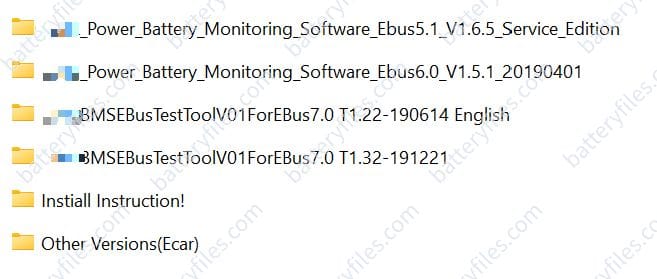

Ebus BMS documents

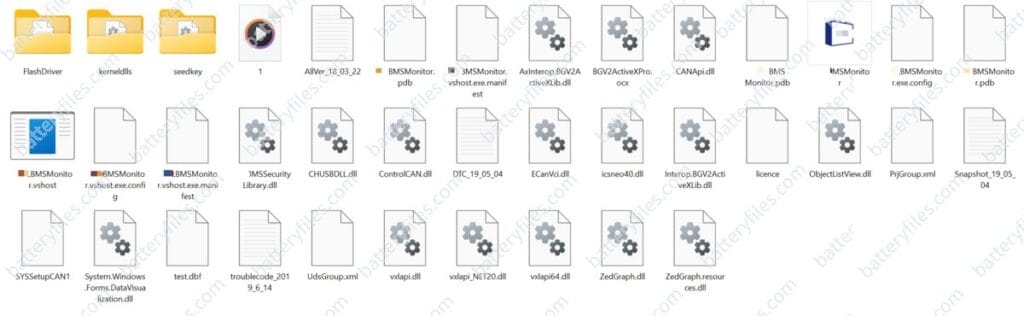

BMSEBusTestToolV01ForEBus7.0 T1.22-190614

Compatibility & Legal Disclaimer

  • Compatibility Notice: This document is independently developed for educational, reverse-engineering study, and academic research purposes. It represents structural conventions compatible with mainstream global Tier-1 platforms.
  • Disclaimer: This product is NOT an official factory blueprint from any automotive OEM or battery manufacturers. All trademarks belong to their respective owners.

Payment

  • Digital Nature & No Refunds: Due to the irrevocable nature of digital downloads, all sales are final and non-refundable once the download link has been accessed.
  • Product Scope: The product is for professionals only, so the price does not include any implementation assistance or technical consulting unless explicitly stated otherwise.
  • Invoice: VAT/Tax 0% (Export of Digital Services). Subject to the Reverse Charge Mechanism. Billing information can be updated on the Invoice.

Secure Delivery & Support

  • Instant Delivery: 100% Automated download immediately after payment via secure SSL checkout.
  • Support: File format corrupted? Contact our support team for a fresh copy within 24 hours.

Looking for a Different Solution?

Contact us at [email protected]. We will reply within 24 hours on business days. : )
