Model 3 350V 75kWh NMC 21700 Cylindrical Liquid-cooled EV Battery Pack 3D CAD/Native CATIA & SMG Files

Download Overview

ParameterSpecificationNote
Dimensions (L*W*H)~2180 * 1500 * 330 mmWhole Pack + Base Enclosure
Weight~480 kgTotal Pack Weight
Nominal Voltage350VUp to ~400V (Fully Charged)
Energy~75 kWhLong Range Version
CellPanasonic 21700 Cylindrical Li-ionModel 21700 4800mAh
Total 4416 Cells (4 Modules)
Thermal ManagementLiquidMicro-channel Snake-like Cooling Ribbon
Thermal PropagationPassiveIntumescent material between cells/modules
IP RatingIP67Automotive Grade / Outdoor
ApplicationElectric Vehicle Compatible with Model 3
Download: Native CATIA V5 & Lightweight SMG included

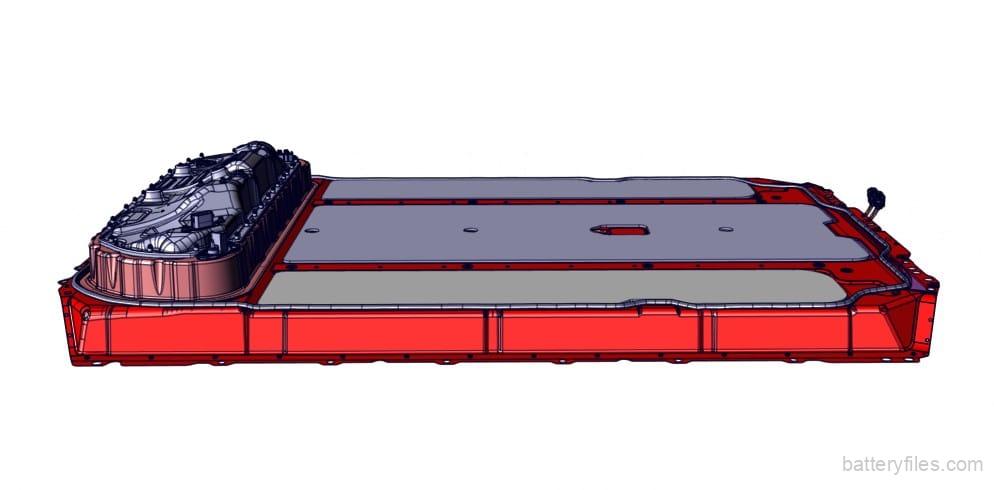

Tesla_Model_3_Battery_Pack_3D (5)

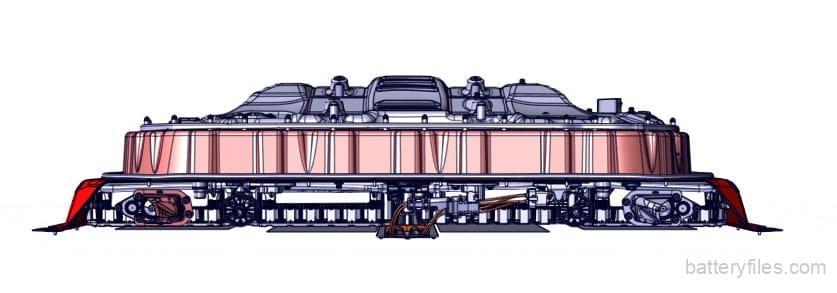

Tesla_Model_3_Battery_Pack_3D (4)

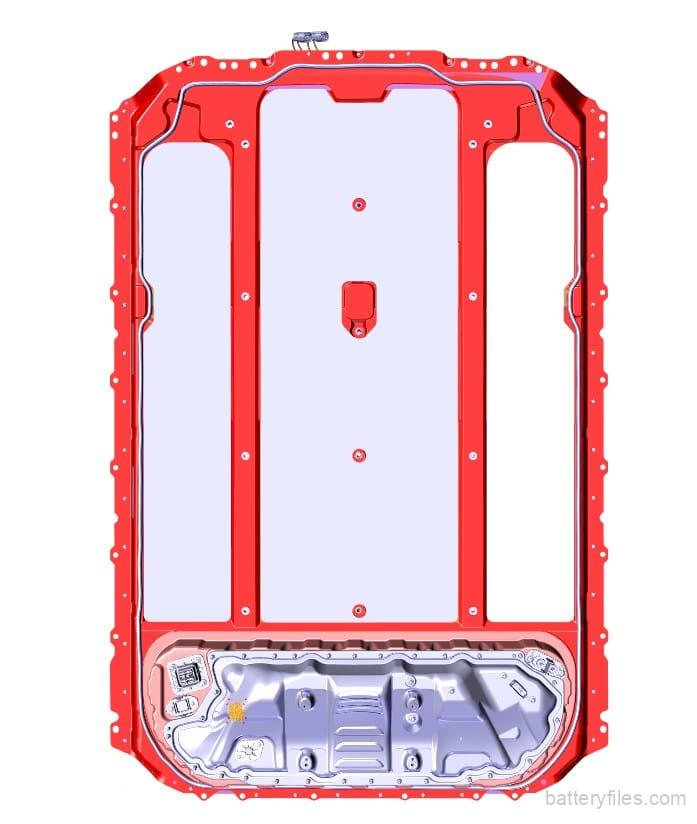

Tesla_Model_3_Battery_Pack_3D

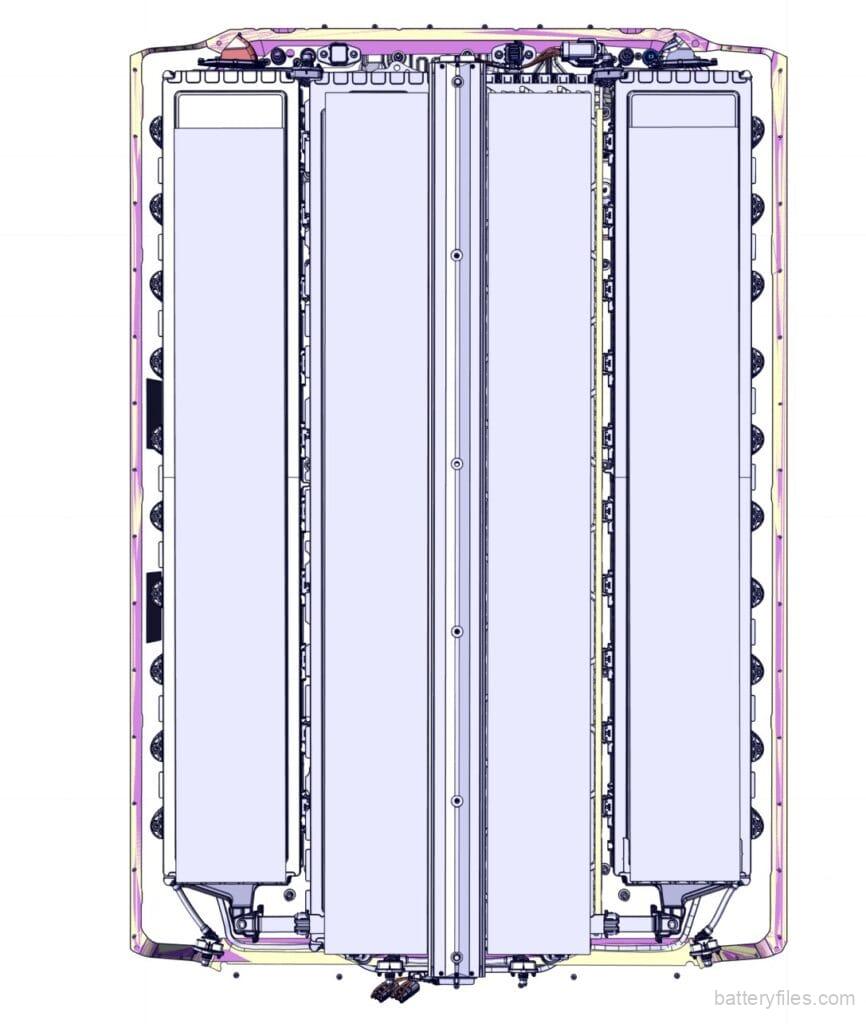

Tesla_Model_3_Battery_Pack_3D (3)

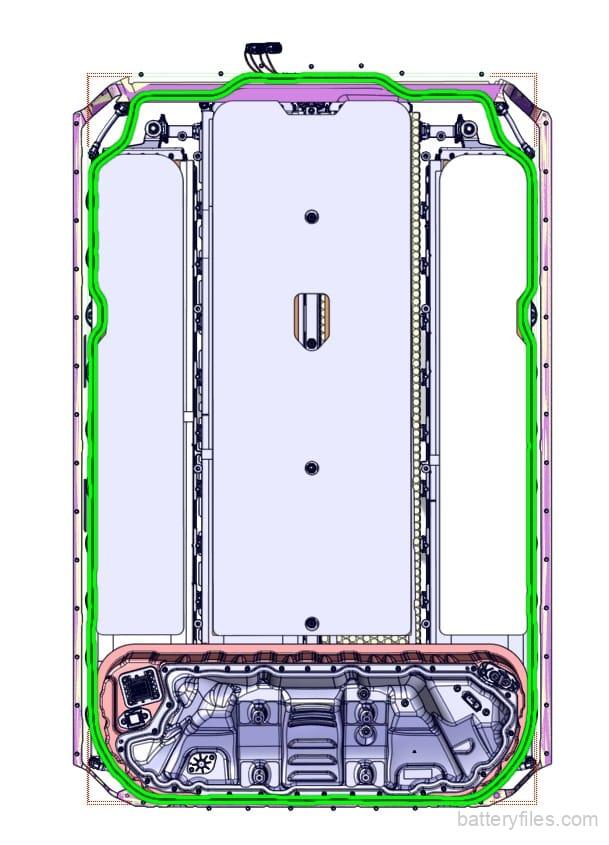

Tesla_Model_3_Battery_Pack_3D (2)

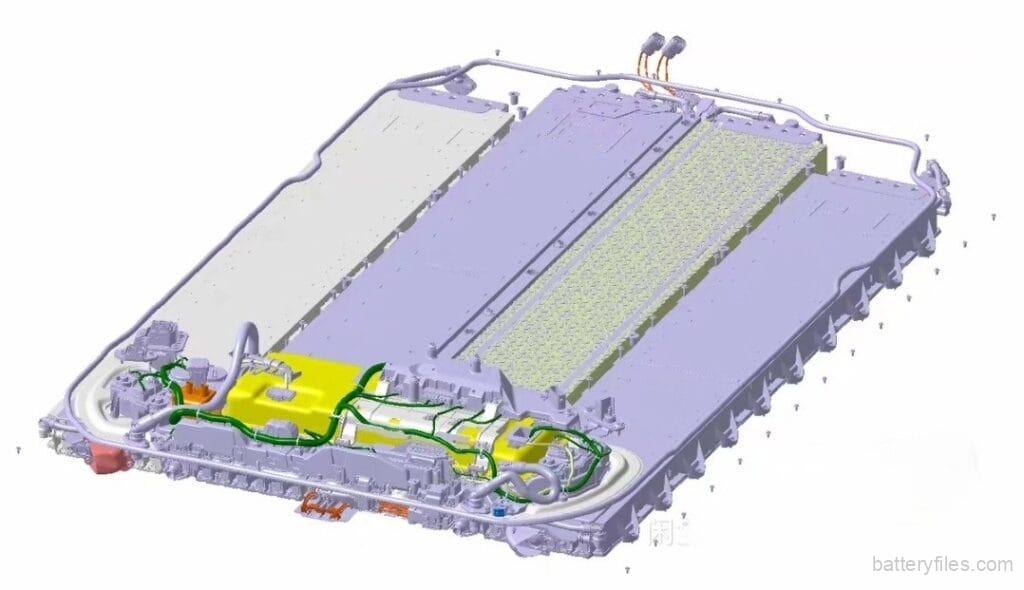

Tesla_Model_3_Battery_Pack_3D Modules
Tesla_Model_3_Battery_Pack_3D battery cells and cooling pipes

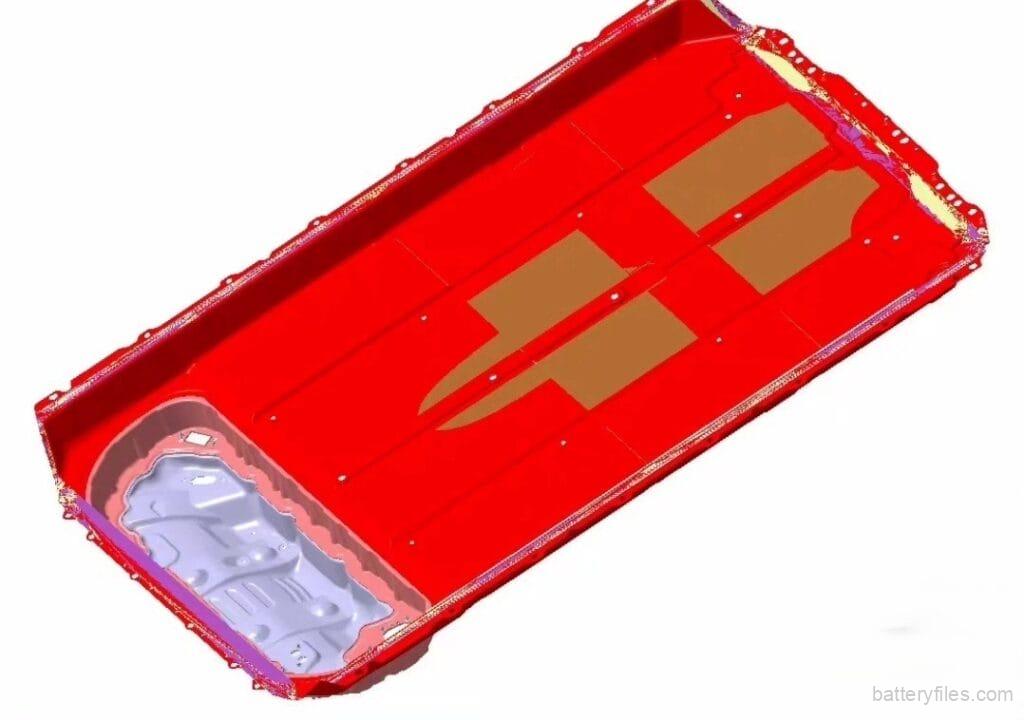

Tesla_Model_3_Battery_Pack_3D top cover
